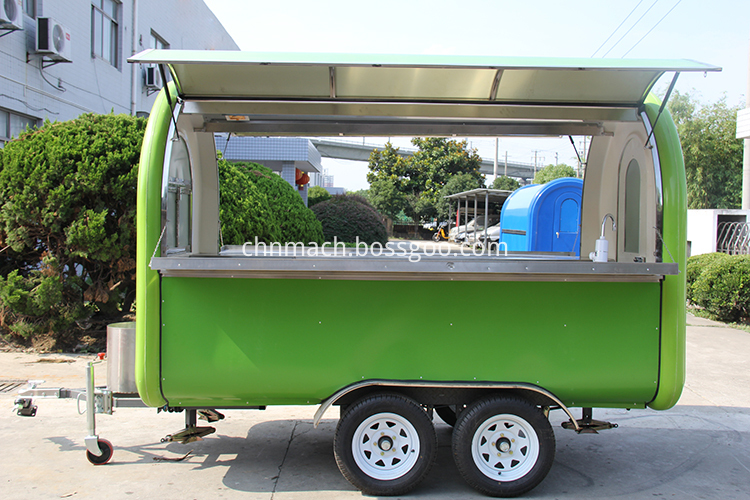

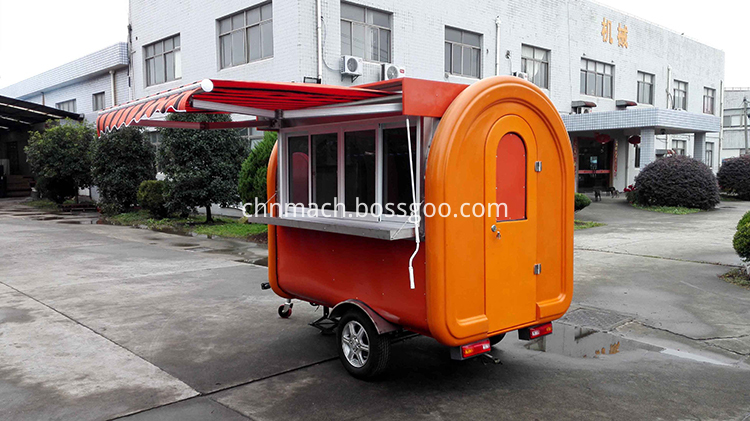

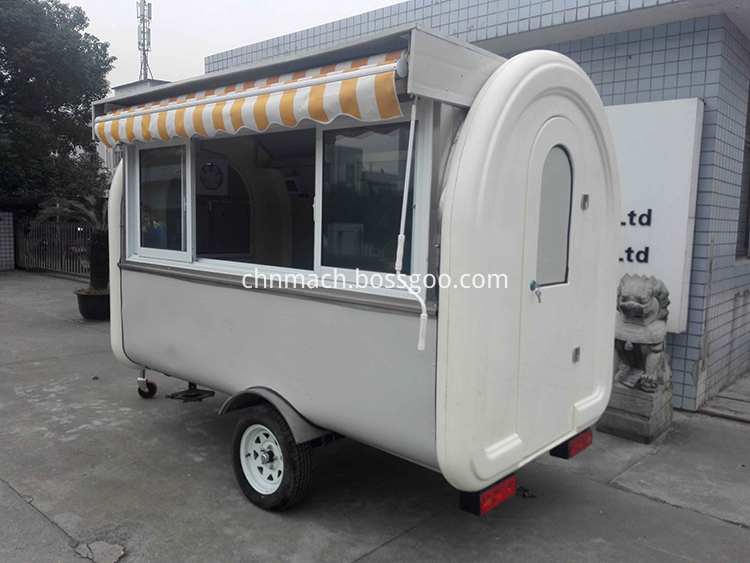

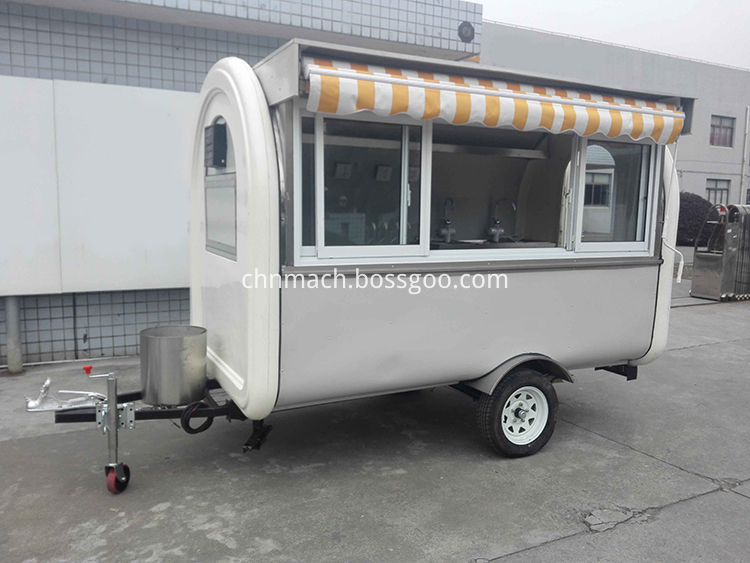

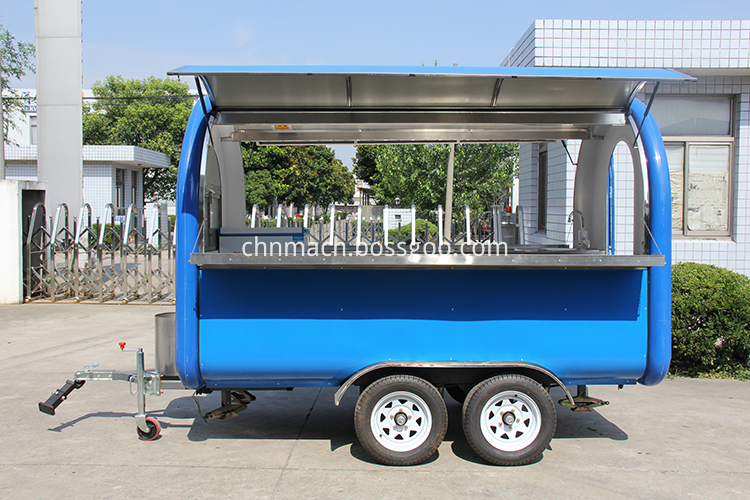

Snack Machine is one of the new designed service machine, included Food Truck, food van, Food Trailer and Food Cart . It has two types tow-able and electric. Fast Food Trailer widely used for selling hot dogs, sandwich, coffee, ice cream etc.
Mobile food cart can be customized Tidy and easy operated, the inner configuration can be changed according your requirement. OEM is accepted, welcome to visit our factory !
Mobile food trailer have the advantage as follows:
Wheels: Single axle or double axle with car tire
Chassis:Integral steel frame construction and suspension components treated with rust resistant protective coating.
Body:The wall frame is welded by square tubes, the external wall is all-steel, the middle layer is heat insulation one, One or Two selling window available in front ,One advertisement place in front, some working tables,High visibility tail light signal system.
Cart Flooring:Non-slip flooring (aluminum) with drain, easy to clean up.
Electric accessories:Lighting device, socket, voltage governor, fuse/connecting box and external cables available.
Water Cycle system:Double sinks with hot and cold water taps, a fresh water tank, a waste water tank.
Draw bar:Guide wheel,hitch ball and cover.
Color: White, Black, Red, Yellow, Orange, Green, Blue or customized.
Technical Parameter:
Model : HT-VL888
Housing material: Fiber glass& stainless steel

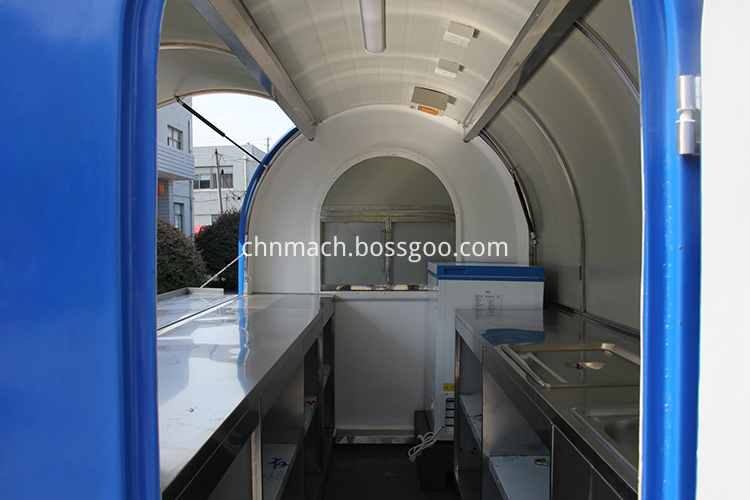

Internal Material: Stainless steel & color plate
Overall dimension: 2.3*1.65*2.3meter
Max loading: 500kg
Chassis: Iron
Wheel size: 14 In
Ground clearance: 150mm
Tires: single axis 2pcs / double axis 4pcs
Optional configuration:
Gas burner
Gas/electric double dip fry
Gas/electric BBQ grill
Gas/electric flat grill
Gas steamers
Fridge/workbench fridge
Electric donut machine
Soft/hard Ice Cream Machine(floor or table type)
Single/Two/Three Tank Slush Machine
Inner configuration can customized according your requirements
Snack Machine
Snack Machine,Food Trailer,Food Cart,Food Truck,Fast Food Trailer,Food Carts
